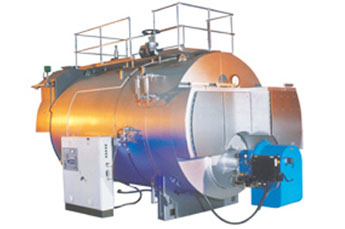

Packaged Oil/Gas Fired Boiler
Standard Engineering offers 3 pass wet back truly packaged high efficient Furnace oil or Gas fired steam boilers.
The 3 pass wet back design with mono block burner assembly ensures complete combustion & maximum thermal efficiency resulting into high Steam to Fuel ratio. Each boiler is designed to ensure ease of operation & maintenance.
Standard Engineering boilers are truly packaged which reduces the site work & project completion time, saves money & ensures highest quality of each component of the boiler.
Features
Truly packaged type
The Boiler Comes Pre-wired & pre-insulated from the factory itself reducing the site work & cost of site activities.
Saddle Mounted Boiler
The entire unit is saddle mounted, including all accessories - only connections for water, I D fan, chimney, electricity and steam outlet are required to commission the boiler.
Compact
The boiler needs less floor space because of the compact design.
Boiler Burner
The mono block burner provided on the boiler has higher turn down ratio ensuring higher efficiency at lower running loads on the boiler.
Mountings & Accessories
IndoTherm Boilers are fitted with mounting and accessories of international repute and standards, the feed water pumps are the vertical multistage SS pumps.
Centrally Located Furnace
This ensures no tubes in cold zone & enhances effective heat transfer resulting into lower start up time.
High Steam Space
The higher steam space inside the boiler results in better response to fluctuating steam loads.
TDS based Automatic Boiler Blow down
The boiler is optionally provided with TDS based automatic boiler blow down system which ensures optimum blow down from the boiler & saves fuel.
Capacity Range
From 500 kg/hr to 10000 kg/hr.
Standard Design Pressure
10.54 kg/cm2 (g), 17.5 kg/cm2 (g) & 21 kg/cm2 (g)
INDOTHERM offers complete package for the Boiler House consisting of
Chimney
Pollution control equipments
Piping (IBR/NIBR)
Feed water tank with accessories
On site IBR formalities
