Condensate Recovery System
Significant amounts of energy and resources can be saved by setting up a system to quickly recover and reuse Condensate & Flash Steam.
In an indirect heating process only 80% of the steam energy is used for heating & 20% energy comes out in the form of Condensate.
Condensate is valuable resource of Heat available in process plant. Recovery of condensate reduces Fuel Consumption significantly by increasing the feed water temperature.
Water charges:Any condensate not returned needs to be replaced by fresh water, increasing the fresh water requirement of the plant & its chemical treatment cost.
Reduction in ETP load:Hot condensate drained is taken to the ETP which increases the load on ETP. This can be avoided by complete condensate recovery.
Maximizing boiler output:As per F & A rating of boiler, hotter the feed water temperature higher will be the steam output from boiler.
Reduction in Blow down Loss:Condensate is pure water, which contains almost no total dissolved solids (TDS). Returning more condensate to the feed-tank reduces the need for blow-down & thus reduces the energy lost from the boiler.
The steam is used in the process plants at various pressures depending upon the temperature requirements. The condensate from the high pressure steam when comes to low pressure, some part of the condensate get evaporated which is called as flash steam.
Recovering the maximum possible flash steam back to the feed water tank reduces the fuel consumption of steam boiler. Flash steam has substantial amount of heat which is ignored & vented to atmosphere in most of the process plants.
The percentage of flash steam generated from condensate is lower but the heat content of flash steam is high.
A properly designed flash steam separator can separate the maximum flash steam from the high pressure condensate & send it back to the feed water tank where it gets mix with the feed water increasing its temperature.
Higher the steam pressure used in equipment higher amount of flash steam will be generated from condensate.
The Flash Steam separator system consists of :
Flash Separator designed as per condensate quantity, pressure & temperature of con
Pressure gauge with complete SS body & internals to show the flash steam pressure
Safety valve to release the flash steam in case of high pressure
Float controlled steam trap to remove condensate only from flash separator
Y type strainer for removing any foreign particles in condensate Sight glass for the monitoring
1000 kg/hr condensate recovered can save Rs. 45,00,000/- per year on FO as fuel considering 20 hrs a day & 300 days a year operational.
1000 kg/hr condensate recovered can save Rs. 700,000/- per year on Coal as fuel considering 20 hrs a day & 300 days a year operational.
The payback for the complete system comes out to be less than 6 months.
Unique Feature:

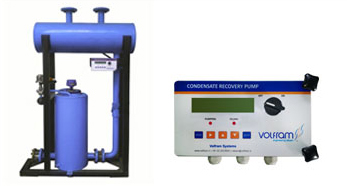

Inbuilt Digital Condensate flow totaliser with Pump's pumping/Filling mode indicator & reset facility. Steam Operated Pump with Mechanical internals also Available.
Features:
Uses inexpensive steam, air or gas to pump the condensate
Negligible steam consumption
Zero Maintenance, no cavitations, no leaking seals, impeller wear or motor problems
Only one moving part (SS float) increases reliability
Superior build quality and rugged construction
Pre-wired, pre-piped packaged Skid Mounted for easy installation
Widest range of steam-operated pumps
Skid Mounted Unit which is easy to install
